DeepRTE

Pre-trained Attention-based Neural Network for Radiative Transfer

Back

header

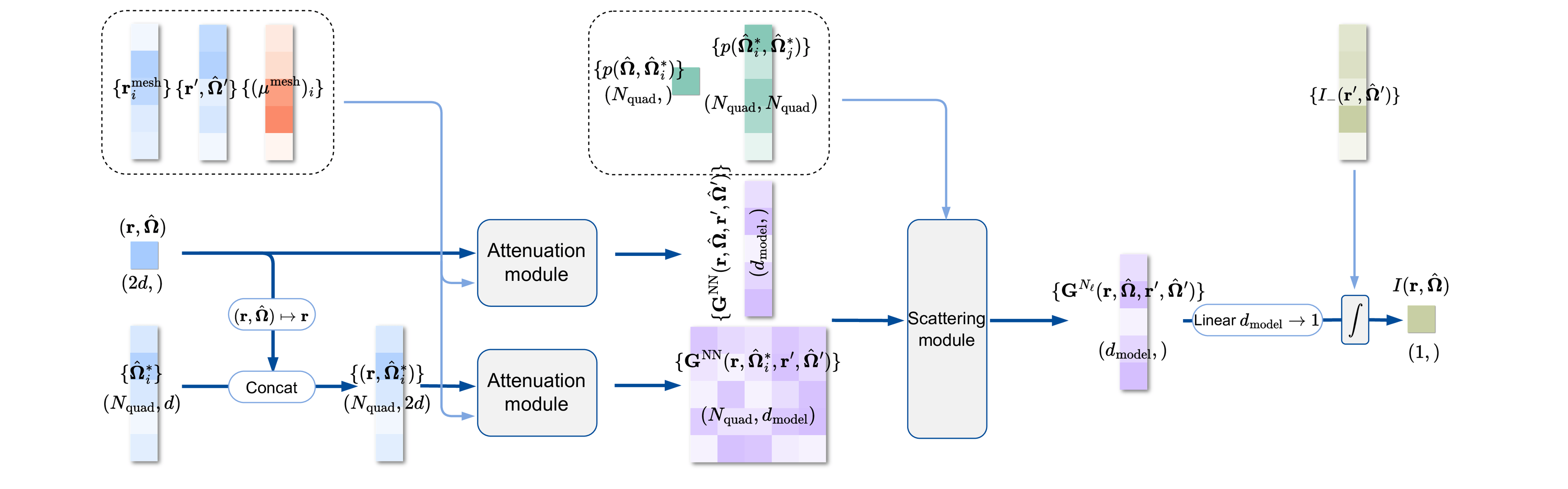

DeepRTE is a neural operator architecture designed to solve the Radiative Transfer Equation (RTE) in phase space. This repository provides code, configuration, and utilities for training, evaluating, and experimenting with DeepRTE models using provided RTE datasets.

Any publication that discloses findings arising from using this source code, the model parameters or outputs produced by those should cite the DeepRTE: Pre-trained Attention-based Neural Network for Radiative Transfer paper.

DeepRTE learns the solution operator:

A:(I−;μt,μs,p)→I,\mathcal{A}: (I_-; \mu_t, \mu_s, p) \to I,

for the following steady-state radiative transfer equation:

Ω⋅∇I(r,Ω)+μt(r)I(r,Ω)=μs(r)Sd−1∫Sd−1p(Ω,Ω∗)I(r,Ω∗) dΩ∗,x∈D⊂Rd,  Ω∈Sd−1,\Omega \cdot \nabla I(r,\Omega)+\mu_t(r)I(r, \Omega) = \frac{\mu_s (r)}{S^{d-1}}\int_{\mathbb{S}^{d-1}} p(\Omega,\Omega^*)I(r,\Omega^*)\,\mathrm{d}\Omega^*, \quad x\in D\subset\mathbb{R}^d,\; \Omega\in\mathbb{S}^{d-1},

with the in-flow boundary condition:

I(r,Ω)=I−(r,Ω),on Γ−={(r,Ω)∣nr⋅Ω<0}.I(\mathbf{r},\mathbf{\Omega}) = I_{-}(\mathbf{r},\mathbf{\Omega}), \quad\text{on } \Gamma_{-} = \big\{(\mathbf{r},\mathbf{\Omega}) \mid \mathbf{n}_{\mathbf{r}}\cdot\mathbf{\Omega}<0 \big\}.

Installation

1. Clone the Repository

Clone the Repository
git clone https://github.com/mazhengcn/deeprte.git --branch v1.0.1
cd deeprte

or download directly from the Release

2. Install Dependencies

This project uses JAX AI Stack (JAX, Flax, Optax, Orbax, etc.). The recommended way to install dependencies is with uv:

Install Dependencies
uv sync

This installs all necessary dependencies, including the project itself. For NVIDIA GPU support, use:

Install Dependencies with CUDA Support
uv sync --extra cuda

For development, run:

Install Development Dependencies
uv sync --dev --all-extras

to install all development dependencies.

3. Container

A pre-built runtime container is available. To pull the latest image, run:

Pull the Latest Image
docker pull ghcr.io/mazhengcn/deeprte

Start the container with:

Start the Container
docker run -it --gpus=all --shm-size=1g ghcr.io/mazhengcn/deeprte /bin/bash

Alternatively, if you prefer to build the image yourself, use the provided Dockerfile:

Build the Image
docker build -t deeprte .

Dev Container

For development, a devcontainer is provided to ensure a reproducible environment. Simply open the repository root in VSCode, and the container will be built automatically with all required dependencies, development tools, and data volume mounts. Python and its dependencies are managed by uv.

The devcontainer configuration files are located in the .devcontainer/ directory and can be customized as needed.

Datasets and Pretrained Models

Download Datasets

Datasets for training and testing DeepRTE are generated using conventional numerical methods in MATLAB and Python. The source code is available in a separate repository: rte-dataset. For more details, refer to that repository.

Inference (test) and pretraining datasets are hosted on Huggingface: https://huggingface.co/datasets/mazhengcn/rte-dataset. Download datasets to DATA_DIR with (ensure huggingface-cli is installed; if you followed the setup above, it is already included):

Download Datasets
huggingface-cli download mazhengcn/rte-dataset \
    --exclude=interim/* \
    --repo-type=dataset \
    --local-dir=${DATA_DIR}

The resulting folder structure should be (for inference, only datasets under raw/test are needed):

tfds # Processed TFDS dataset for pretraining.
test # Raw MATLAB dataset for test/inference.
train # Raw MATLAB dataset for pretraining using grain.
README.md

Download Pretrained Models

Pretrained models can be downloaded to MODEL_DIR from Huggingface:

Download Pretrained Models
huggingface-cli download mazhengcn/deeprte \
    --repo-type=model \
    --local-dir=${MODELS_DIR}

The folder structure will be:

README.md
v0 # Pre-release version (deprecated).
v1 # Pre-release version (deprecated).
config.json
params
config.json
params
config.json
params

A convenient shell script scripts/download_dataset_and_models.sh is provided to download datasets to ./data and pretrained models to ./models:

Download Datasets and Models
uv run ./scripts/download_dataset_and_models.sh

Run DeepRTE

To run DeepRTE inference:

Run DeepRTE
uv run run_deeprte.py --model_dir=${MODEL_DIR} --data_path=${DATA_PATH} --output_dir=${OUTPUT_DIR}

where ${MODEL_DIR} is the pretrained model directory, ${DATA_PATH} is the data path for inference, and ${OUTPUT_DIR} is the directory to store results.

For example:

Run DeepRTE
DATA_PATH=${1:-"./data/raw/test/sin-rv-g0.5-amplitude5-wavenumber10/sin-rv-g0.5-amplitude5-wavenumber10.mat"}
MODEL_DIR=${2:-"./models/v1.0.1/g0.5"}
OUTPUT_DIR=${3:-"./outputs"}

TIMESTAMP="$(date --iso-8601="seconds")"

python run_deeprte.py \
  --model_dir="${MODEL_DIR}" \
  --data_path="${DATA_PATH}" \
  --output_dir="${OUTPUT_DIR}/${TIMESTAMP%+*}"

A shell script ./scripts/run_deeprte.sh containing above contents is also provided for convenience, you can modify it and run:

Run DeepRTE
uv run ./scripts/run_deeprte.sh

You can also run using the runtime container:

Run DeepRTE
docker run -it \
    --volume <DATA_PATH>:/deeprte/data/data_path \
    --volume <MODEL_DIR>:/deeprte/models \
    --volume <OUTPUT_DIR>:/deeprte/output \
    --gpus all \
    ghcr.io/mazhengcn/deeprte \
    python run_deeprte.py \
    --model_dir=/deeprte/models \
    --data_path=/deeprte/data \
    --output_dir=/deeprte/deeprte_output

Train DeepRTE

To train DeepRTE from scratch, run:

Train DeepRTE
uv run run_train.py --config=${CONFIG_PATH} --workdir=${CKPT_DIR}

After training, checkpoints are saved under ${CKPT_DIR}. To generate an inference checkpoint, run:

Generate Inference Checkpoint
uv run generate_param_only_checkpoint.py --train_state_dir=${TRAIN_STATE_DIR} --checkpoint_dir=${CKPT_DIR}

You can also modify and run the convenient scripts:

Run Training Script
uv run ./scripts/run_train.sh
Generate Inference Checkpoint
uv run ./scripts/generate_param_only_checkpoint.sh

Citing This Work

Any publication that discloses findings arising from using this source code, the model parameters or outputs produced by those should cite:

DeepRTE Citation
@article{ZHU2026118556,
    title = {DeepRTE: Pre-trained attention-based neural network for radiative transfer},
    journal = {Computer Methods in Applied Mechanics and Engineering},
    volume = {449},
    pages = {118556},
    year = {2026},
    issn = {0045-7825},
    doi = {https://doi.org/10.1016/j.cma.2025.118556},
    url = {https://www.sciencedirect.com/science/article/pii/S004578252500828X},
    author = {Yekun Zhu and Min Tang and Zheng Ma},
    keywords = {Neural operator, Radiative transfer equation, Attention, Pre-training},
}

Acknowledgements

DeepRTE's release was made possible by the contributions of the following people: Zheng Ma, Yekun Zhu, Min Tang and Jingyi Fu.

DeepRTE uses the following separate libraries and packages:

We thank all their contributors and maintainers!

Get in Touch

If you have any questions not covered in this overview, please open an issue or contact the Zheng Ma at zhengma@sjtu.edu.cn.
